MLA-10
4 in 4 out MIDI Line Amplifier - Rack Mount
Best in Show Winner - AES
- EQ Magazine
JLCooper Electronics extends the distance of MIDI with the MLA - MIDI Line Amplifiers. They let you effectively extend MIDI cable length using twisted pair wire or a standard audio snake.
MIDI Line Amplifiers sending MIDI data over long distances with the capability to send information in excess of 1000 feet without latency, delays or errors.
Ideal for touring systems or permanent installations, MLA’s can be used in schools, recording and production facilities, boardrooms, live performances, convention centers, churches, theaters, stadiums, amusement parks and more.
When to Use a MIDI Line Amplifier
MIDI (Musical Instrument Digital Interface) is an increasingly important consideration for schools, recording facilities, stadiums, arenas, hotels, amusement parks, or other facilities where MIDI messages are required to be sent a long distance, or to multiple locations.
The MIDI standard only permits a maximum cable run of less than 50 feet. The innovative MLA Series MIDI Line Amplifiers overcome this limitation.
The MLA’s convert the MIDI signal into a balanced high speed digital protocol that can travel over common twisted pair wire. The signal is converted back to MIDI through another MLA at the other end of the cable run.
MLA’s are ideal for permanent installations or anywhere a longer MIDI cable run is required.
The MLA’s can be easily networked to multiple locations such as from the master control room to a series of separate MIDI rooms in a recording studio, broadcast facility or educational lab. This allows you to de-centralize the location of MIDI devices in the system.

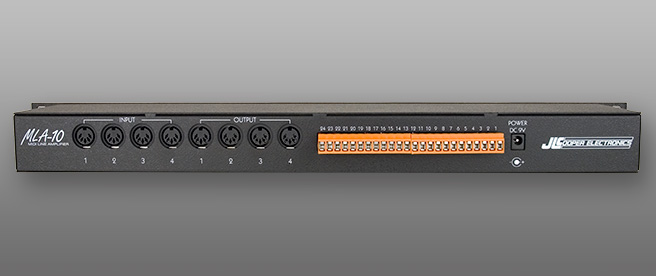

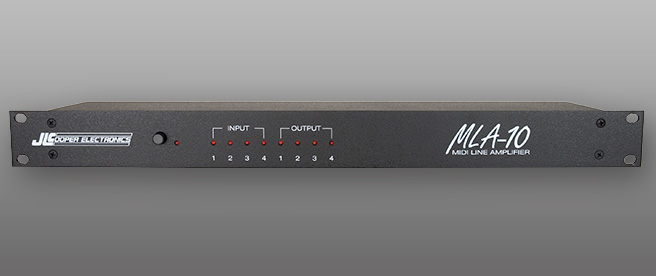

MLA-10TM is designed to fit in a standard single 19” rack space. Each MLA-10 features 8 MIDI lines configured as 4 inputs and 4 outputs. It has 4 MIDI input connectors, 4 MIDI output connectors and individual activity LEDs.
The choice between the MLA-1 and MLA-10 depends on mounting requirements. Combine MLA units in whatever configurations best suits your needs. MLA-10 and MLA-1 are functionally identical and offer different form factors. Each provides 4 long distance connections in either direction. MLA-1 or MLA-10 can be combined with up to 4 MLA-XLR units.
MLA-10 MIDI Line Amplifier Features
- 4 MIDI Input connectors
- 4 MIDI Output connectors
- Detachable terminal strip connectors
- MIDI activity LEDs
- MIDI cable runs over 1000'
- Uses common twisted pair wire
- Multiple units may be networked
- Low power consumption
- Can supply power to multiple MLA-1's
- Front panel power switch
- Single 19" rack space
- Heavy duty rack enclosure
Physical Specifications
- Size 19" x 3.87" x 1.75"
- Weight 3.25 lbs
