MLA-1

MIDI Line Amplifier - Panel Mount

The MLA-1 is a four chan- nel MIDI Line Amplifier that can be surface mounted and used with a separate MIDI jack panel. This facilitates greater flexibility for installations where MLA units can be in every required location.

MLA-1 can be powered by an MLA-10 or used alone with a separate power supply. Its compact size allows it to be mounted on or inside a wall or panel, truss mounted, etc. A single output can be connected to as many as 4 inputs of another MLA-1 or MLA-10.

"JJLCooper MIDI Line Amplifiers are in use by some of the greatest performers and facilities in the world including; Blue Man Group, Cavalia, Cirque du Soleil, Depeche Mode, Ghost, Grand Ole Opry, Journey, Juliard Academy, Kelly Clarkson, Los Angeles Philharmonic, Pearl Jam, Queen, Royal Caribbean Cruises, Sidney Theatre Company, Tame Impala and Yes."

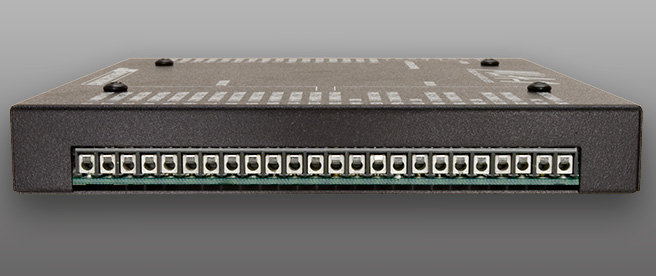

MLA-1 Side View

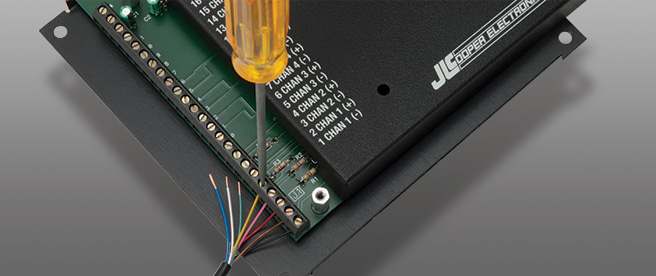

MLA-1 Wiring Example

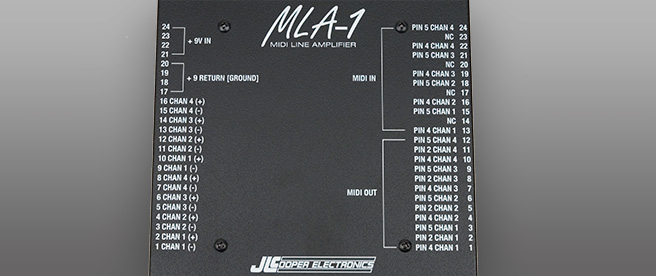

MLA-1 Front View

The choice between the MLA-1 and MLA-10 depends on mounting requirements. Combine MLA units in whatever configurations best suits your needs. MLA-10 and MLA-1 are functionally identical and offer different form factors. Each provides 4 long distance connections in either direction. MLA-1 or MLA-10 can be combined with up to 4 MLA-XLR units.

MLA-1 MIDI Line Amplifier Features

4 MIDI Inputs - 4 MIDI Outputs
Panel mount version
All barrier strip connections
Multiple units may be networked
Can be used with other MLA units.

Physical Specifications

Size 6.6 in x 6.2 in x .85 in
Weight 2 lbs. - .91Kg
