SloMoPro RS-422

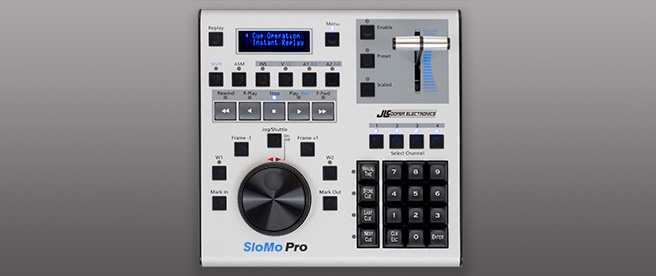

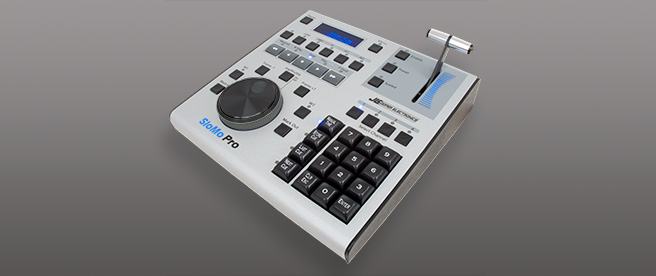

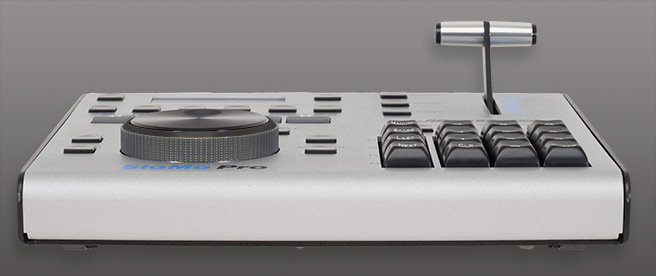

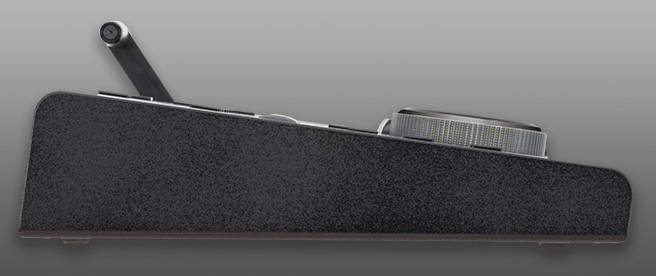

SloMoPro Control Surface with RS-422 Interface

SloMoPro™ RS-422 is a next generation controller (a direct replacement for ES-SloMo J RS-422) with an updated appearance and a sleek, low profile enclosure. The compact enclosure allows a 20% reduction in desktop footprint with same controls and spacing.

It makes simultaneous control of up to four professional file based video recorders lightning fast and easy. One Touch Instant Replay, Deferred Replay and In/Out Replay modes simplify operations so that even inexperienced operators can get reliable and consistent results with minimal training. It’s the perfect controller for remote trucks, sports facilities, game review, studio and other applications.

Controls Most Professional RS-422 File-Based Recorders including; AJA KiPro Rack, KiPro Ultra, Ultra Plus, BlackMagic Hyperdeck Studio, Hyperdeck Studio Mini, Sony XDCAM, BVW and more!

It provides Odetics seamless clip playout functions for use with compatible servers. Browse Clips and view Clip Names with Aja Ki Pro and other decks. GangWay integration provides remotely selectable control of up to 16 or 32 recorders or server channels!

SloMoPro RS-422 Features...

• Mark In and Mark Out Keys to Quickly Store Cues
• Assemble, Insert, Crash and Disable (Lock Out) Editing Modes
• Store up to 1000 Cues or 500 In and Out Points with Vari-speed
• T-Bar for slow motion control - sends Shuttle, Jog or Variable Play
• T-Bar Programmable - Min-Max, Preset Speeds, Active or Passive
• Variable Replay Speeds
• Programmable Cueing Modes - Automatic Play All Cues Function
• Two User Assignable Buttons
• Global Record Lock
• Blackmagic Design Loop Function

SloMo & GangWay Together = SloMo + Gang Roll Power

GangWay16 and GangWay 32 are multi-port RS-422 Gang Roll Switchers/GPI Trigger Boxes. SloMoPro RS-422 and SloMo Mini RS-422 can interface directly with GangWay to provide simultaneous control of up to 32 RS-422 recorders or server channels. GangWay’s port assignments are remotely controlled and indicated on the SloMo display.

SloMoPro RS-422 and Gangway are the perfect low cost alternative to expensive control systems costing thousands more!

• Gang Roll Any Combination of Decks/Channels
• Fast Access Front Panel Enable/Disable All Button
• Three Preset Channel Groups

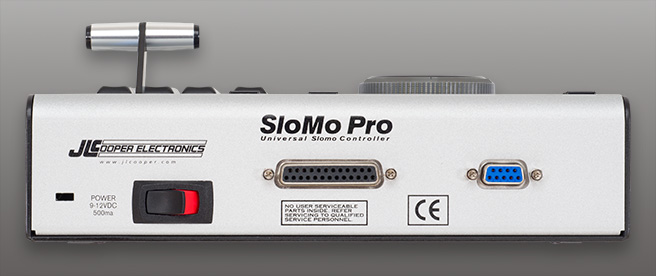

• Front and Rear Mounted RS-422 Ports Standard
• Built In GPI/Tally Inputs and Outputs on GangWay Models

Physical Specifications

• Width - 9 in (22.86 cm)
• Depth - 9 in (22.86 cm)
• Height - 2.25 in (5.72 cm)
• Weight - 4.2 lb (1.9 kg)
