Proton
Compact Broadcast Switcher Panel for BlackMagic Design ATEM
with Developer Host Mode for Easy Integration into Custom Software Applications

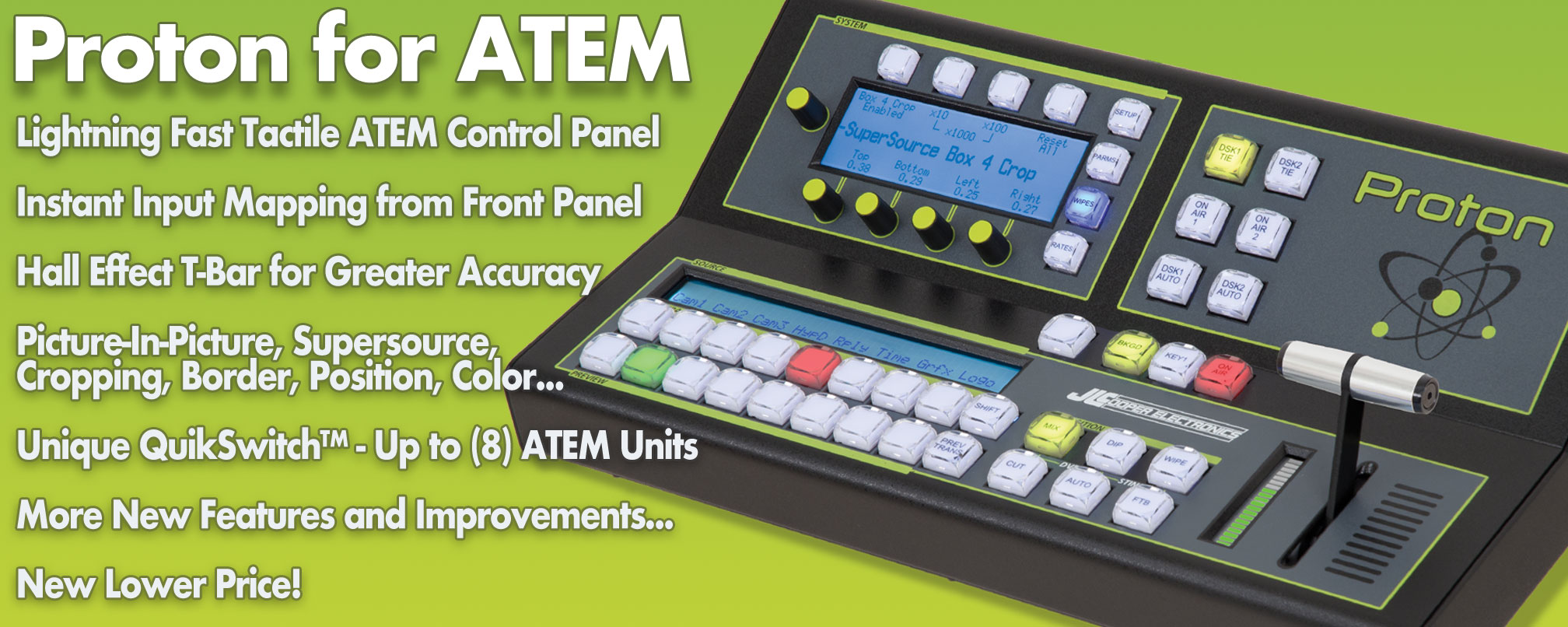

JLCooper's new Proton™ - Switcher Control Surface is a full featured compact hardware control panel for fast video switching in live production environments.
It controls Blackmagic Design ATEM 1 M/E Production Switcher, ATEM 2 M/E Production Switcher, ATEM Production Studio 4K, ATEM 1 M/E Production Studio 4K, ATEM 2 M/E Production Studio 4K and ATEM Television Studio models.
Its fast, intuitive control and low cost make Proton a game changer for mobile, sports, educational, corporate, computer, house of worship and other applications.
Proton and ION updates add support for newer ATEM Mini Extreme ISO, ATEM Mini Extreme, ATEM Mini Pro ISO, ATEM Mini Pro and ATEM Mini, ATEM 1 ME Constellation HD, ATEM 2 ME Constellation HD and ATEM 4 ME Constellation HD models.
New Proton/Ion Firmware Update
Proton at IBC
Proton Features- Lightning Fast Tactile Control Panel - No More Mouse!
- Precision Control Knobs with Push-Button Encoders
- Professional Backlit Relegendable Switcher Buttons
- 16.77 Million Colors on Switcher Buttons
- 240 x 96 Backlit Graphic Display
- 2 x 40 Backlit LCD Display
- Variable Brightness on All Displays and Buttons
- 4 Assignable Macro Buttons
- Precision Hall Effect AluminumT-Bar Transtion Control
- New GPI Input for Remote Control of Auto-Transition
- Nearly All Functions of Larger and More Costly Panels
- Extensive ATEM Parameter Control
- Labels Automatically Appear on Scribble Strip
- Front Panel Source Input Button Mapping
- Extensive BMD Camera Control Features
- Picture-In-Picture Parameter Control
- QuikSwitchTM Feature Controls up to (8) ATEM Units
- Internal Universal Switching Power Supply
- UDP - Multiple Panels Can Be Used Simultaneously
- Free Updates Add New ATEM Models/Features
- Proton 2.03 Update Adds Source Button Mapping
- Adds Source button mapping. In the Proton, this is available in the SETUP menu.
- Adds Camera Control. Press SHIFT + PARMS to access camera parameters.
- Adds support for the ATEM Television Studio HD.
Physical Specifications- Size 14.8 in (37.59 cm) x 8.25 in (21 cm) x 3.35 in (8.51 cm)
- Weight 4.7 lbs (2.13 kg)
