sBOX

Remote Trigger for gBOX and eBOX

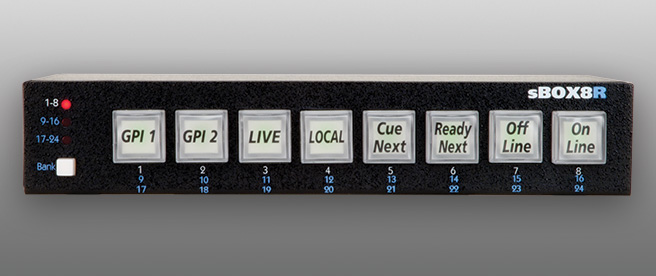

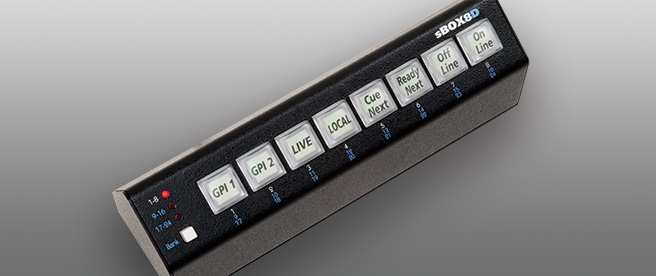

sBOX8D and sBOX8R are used as companion products to eBOX and gBOX. They connect using an included expansion cable and provide a convenient user interface with illuminated user relegendable buttons.

Connect the new sBOX to eBOX (Quad Serial/Ethernet/GPI Interface) or gBOX (GPI Trigger Box) as a simple, relegendable remote, to trigger GPI events. You can also use sBOX with eBOX to trigger the sending of user programmed serial or ethernet messages.

For flexibility, an sBOX can be configured to be able to bank switch among groups of 8 GPI outputs or it can be configured to address a fixed bank of 8 GPI outputs.

Multiple sBOXes can be chained together to form larger user interfaces or to allow for multiple control areas. The expansion cable that connects the sBOX to either the eBOX or gBOX carries the data signals and power, so separate power supply is not required for the sBOX.

sBOX features 8 LED backlit buttons, an illuminated bank switch that allows a single sBOX to control up to 24 GPI outputs. Multiple sBOX units (up to 3 with eBOX) can provide dedicated buttons for up to 24 GPI outputs.

It also has a built in GPI Out on the rear panel, allowing sBOX to be used as a stand alone GPI and Tally trigger box.
